Switches

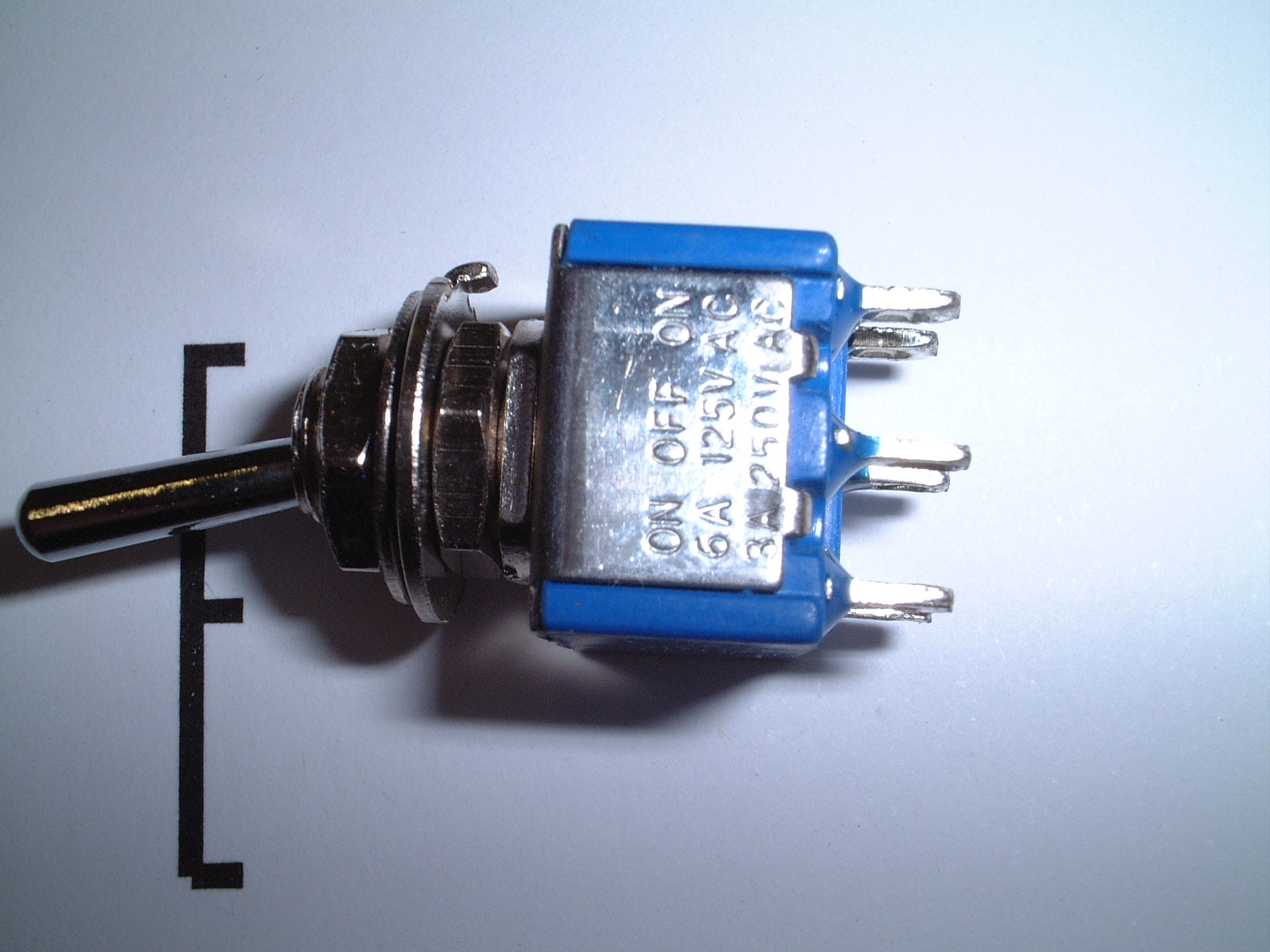

  A small dpdt toggle switch

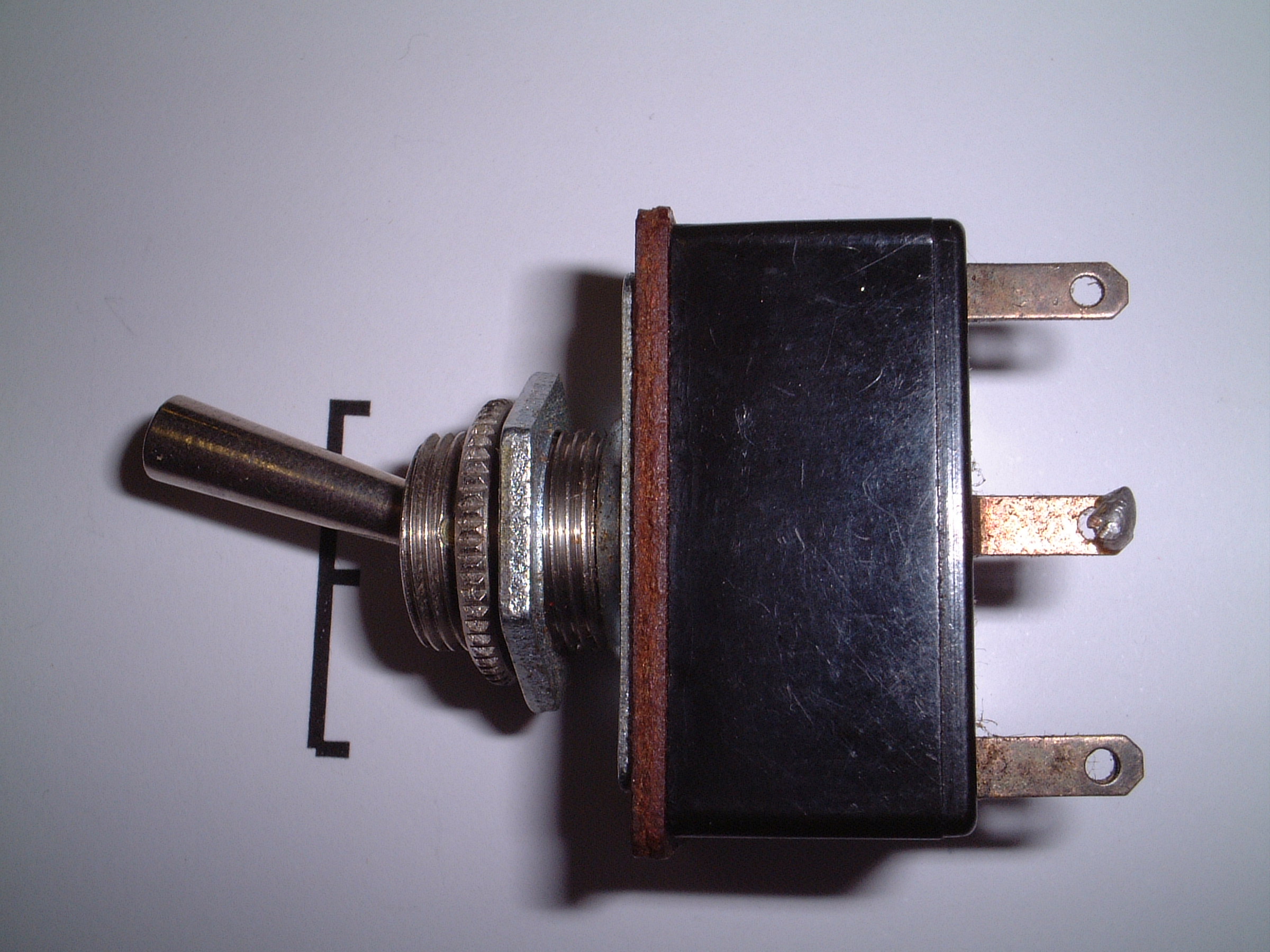

A large spdt toggle switch.

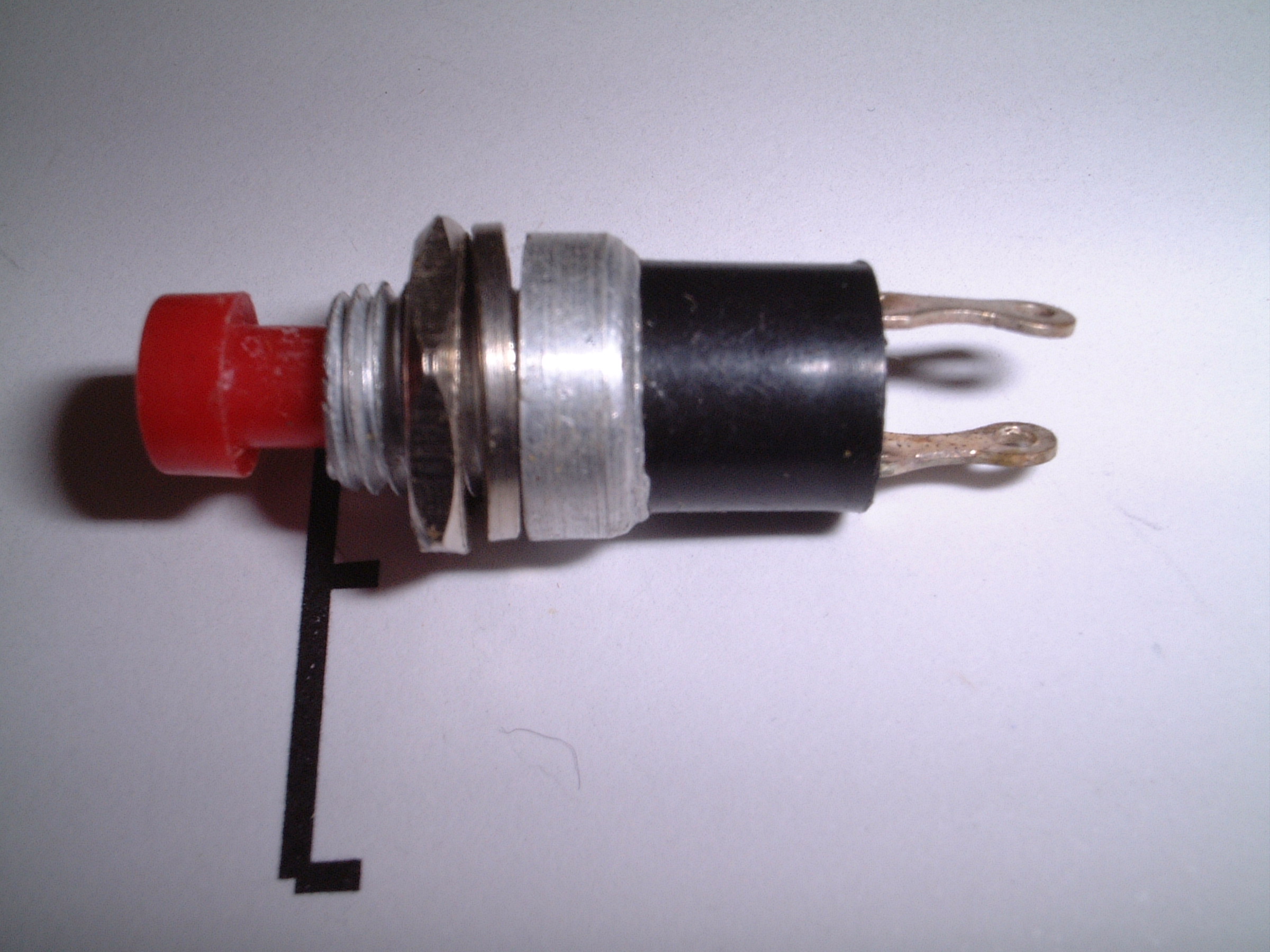

  A push to make switch

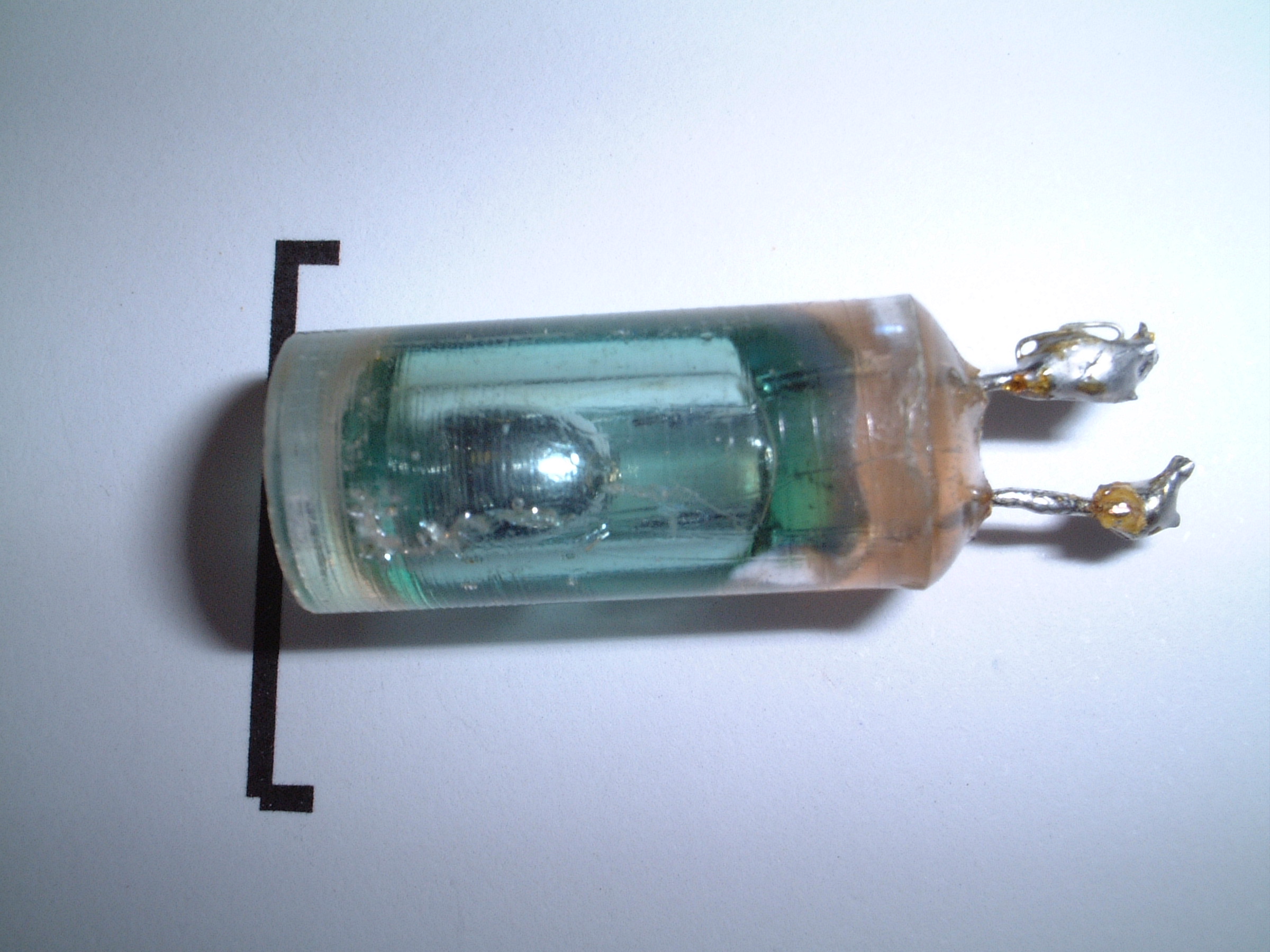

A mercury tilt switch.
Note the ball of mercury within the plastic case.

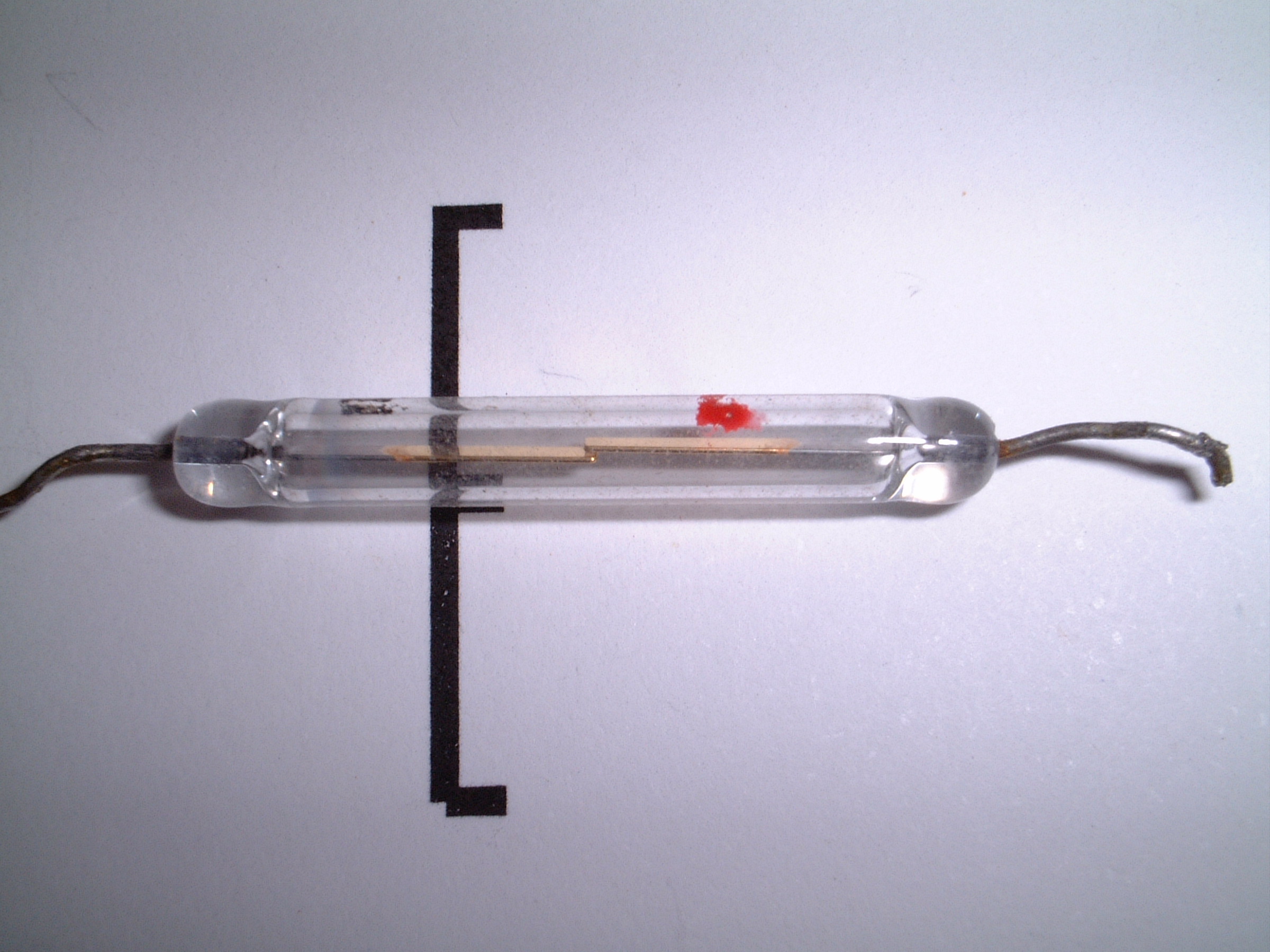

  A reed relay
  The metal plates move together when within a magnetic field.




A micro switch.




  A micro switch.

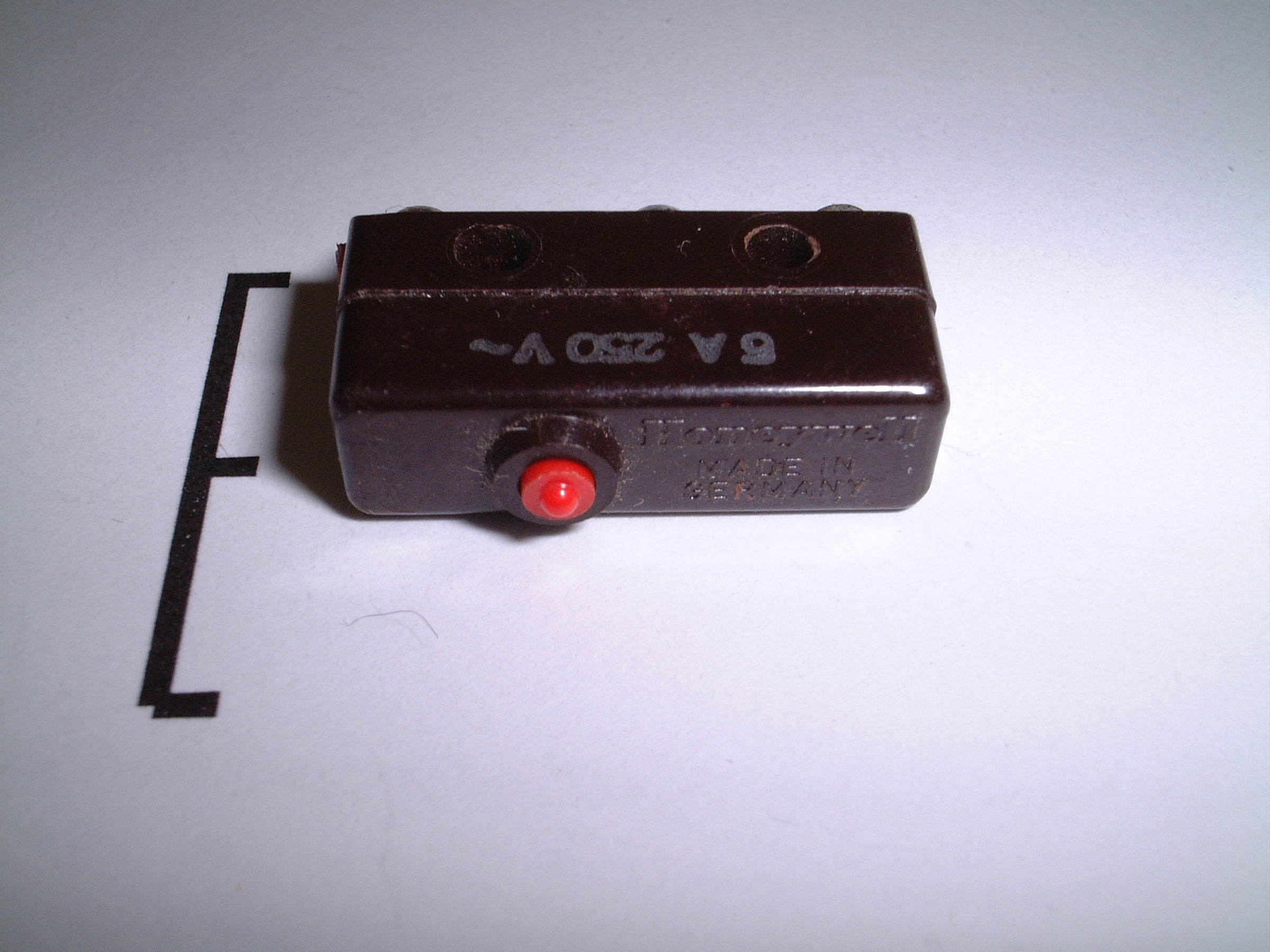

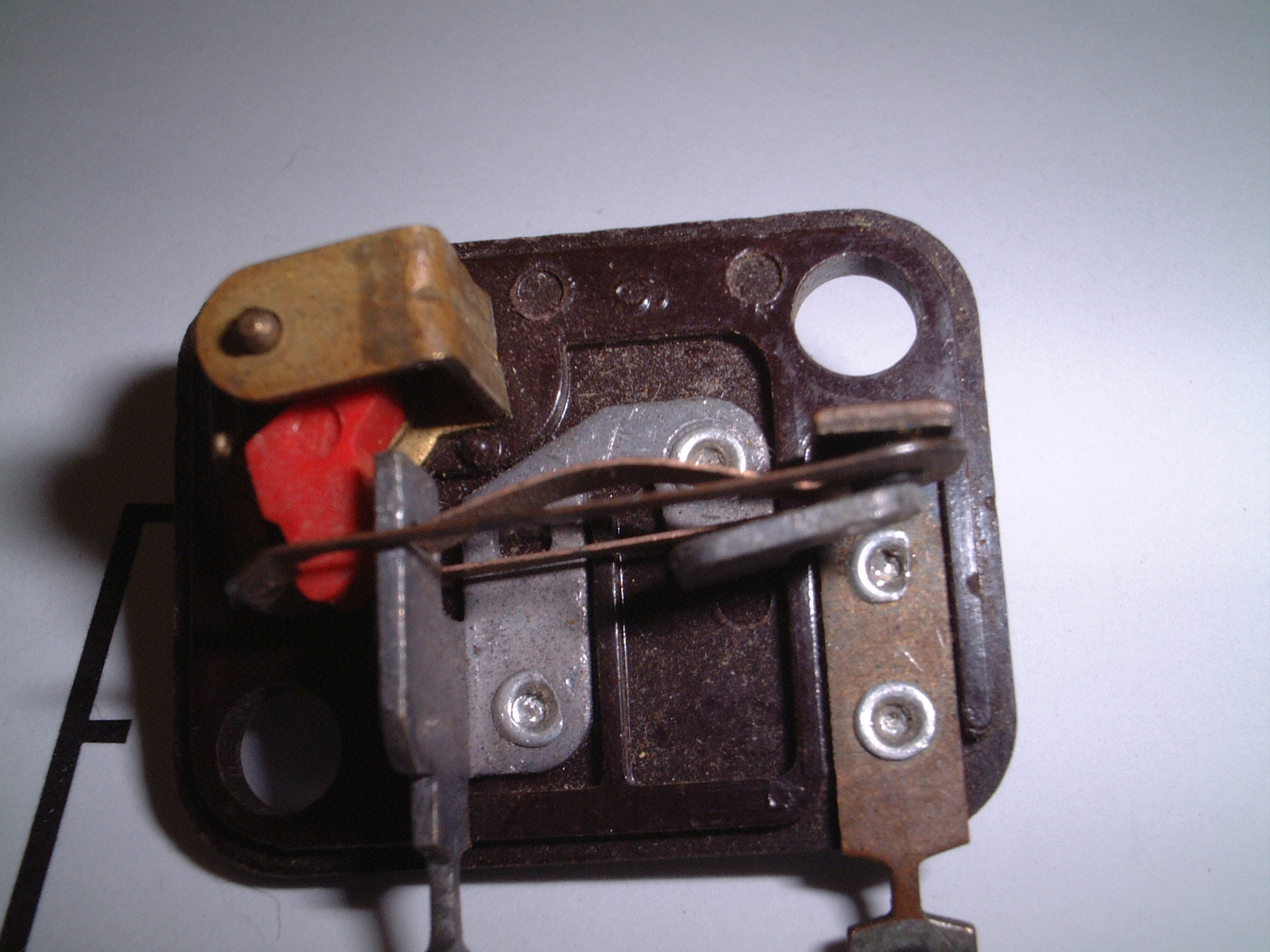

A micro switch.

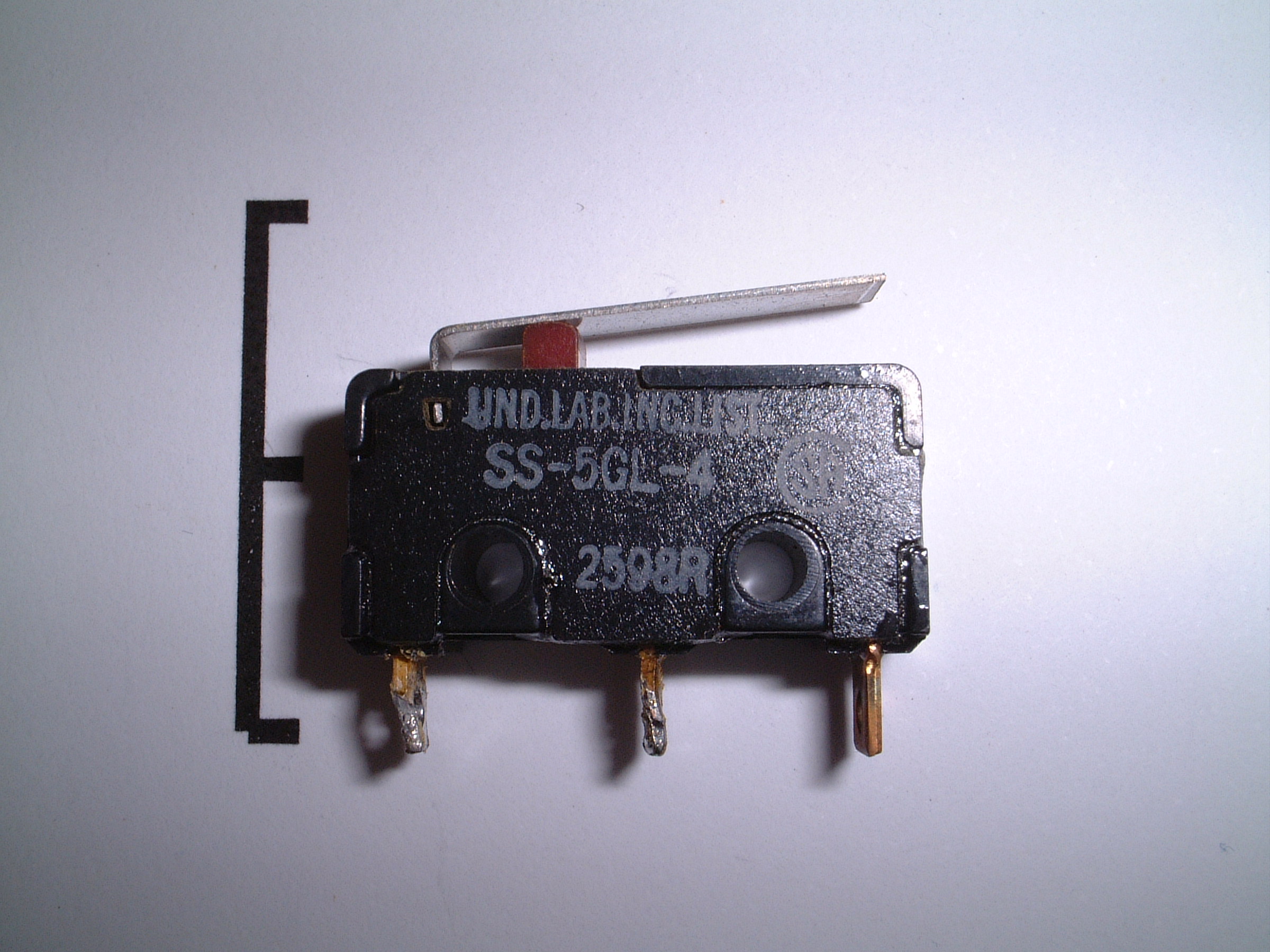

  A lever micro switch.

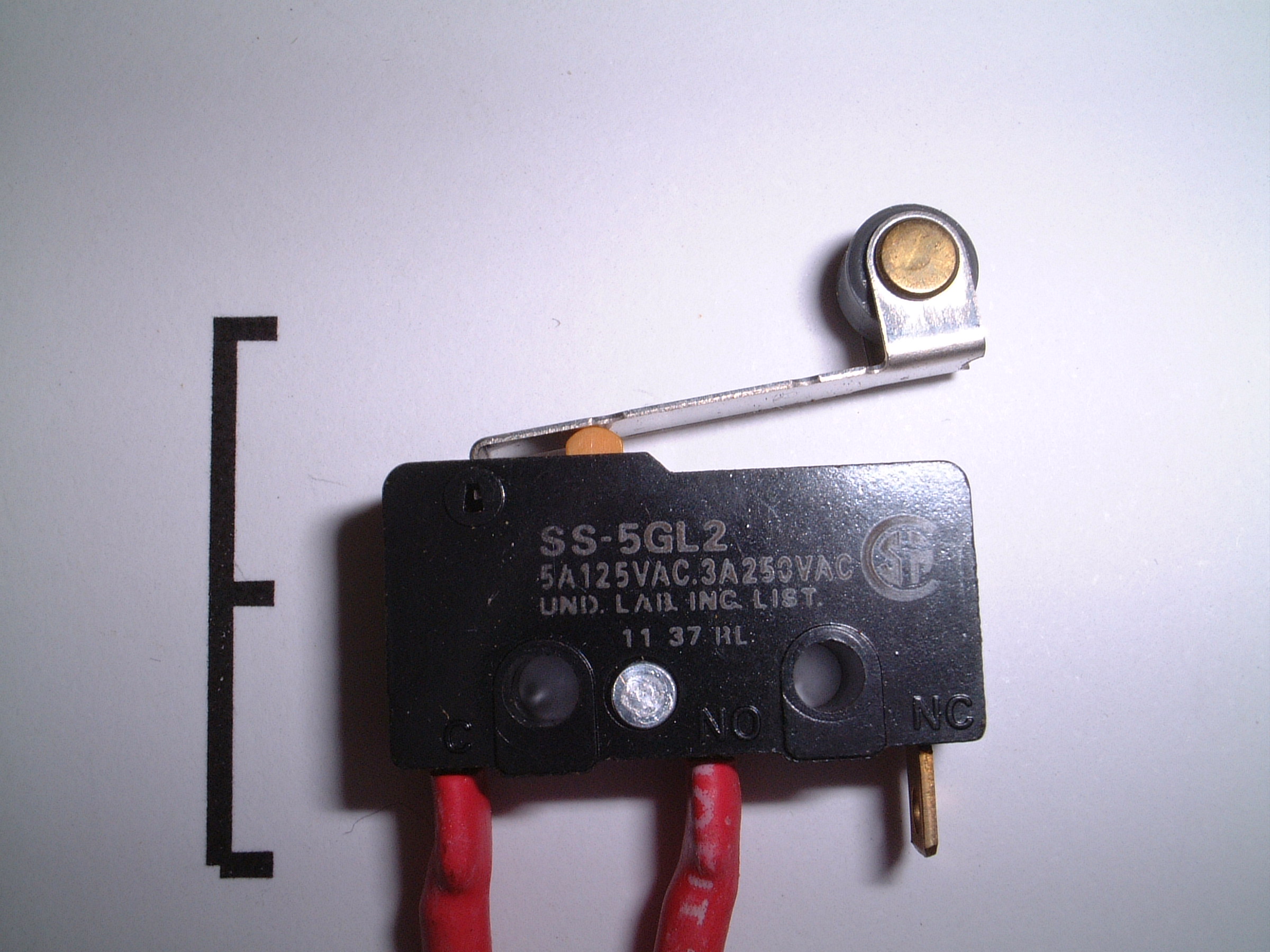

A roller micro switch.




  A rotary switch.

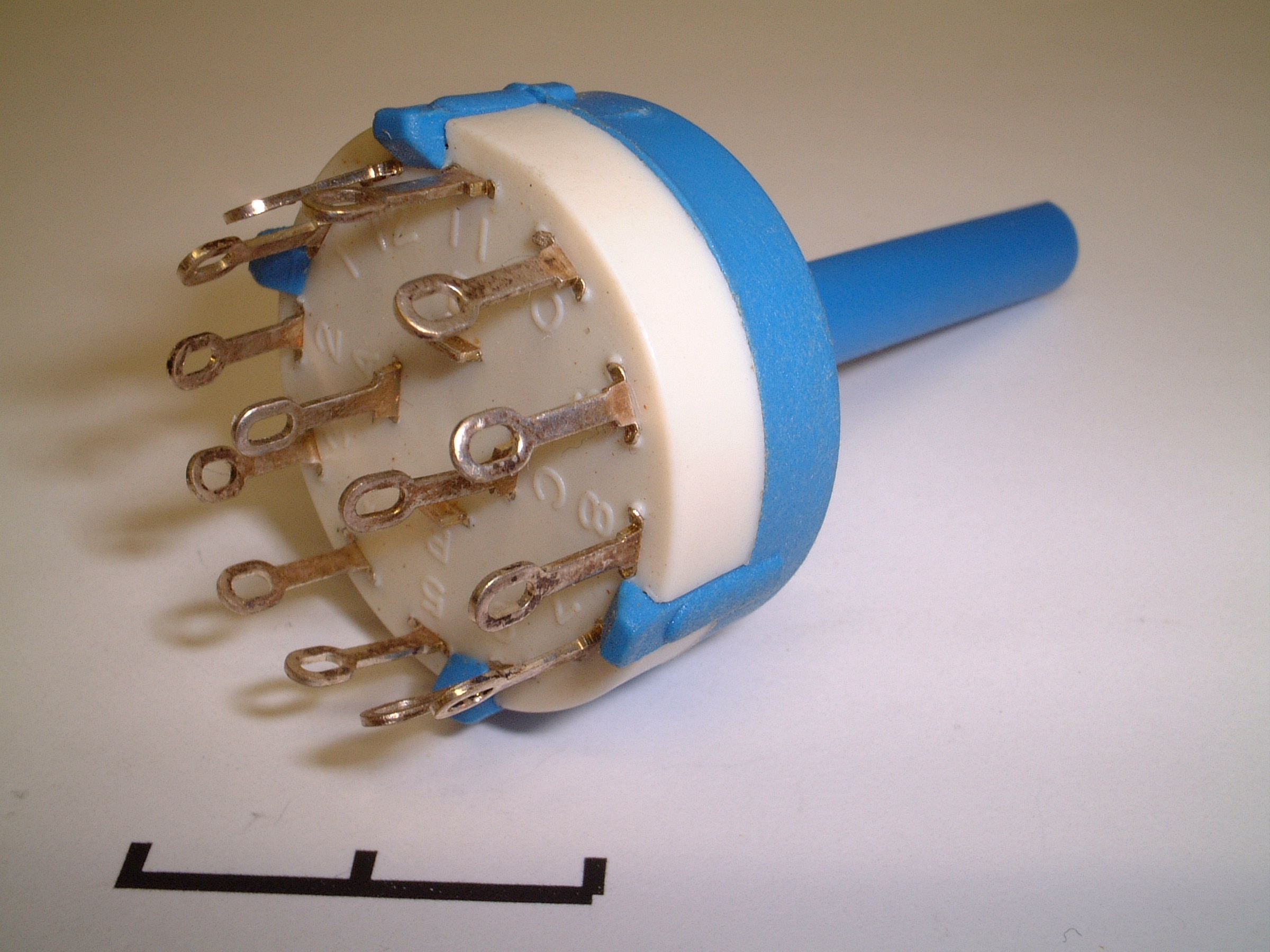

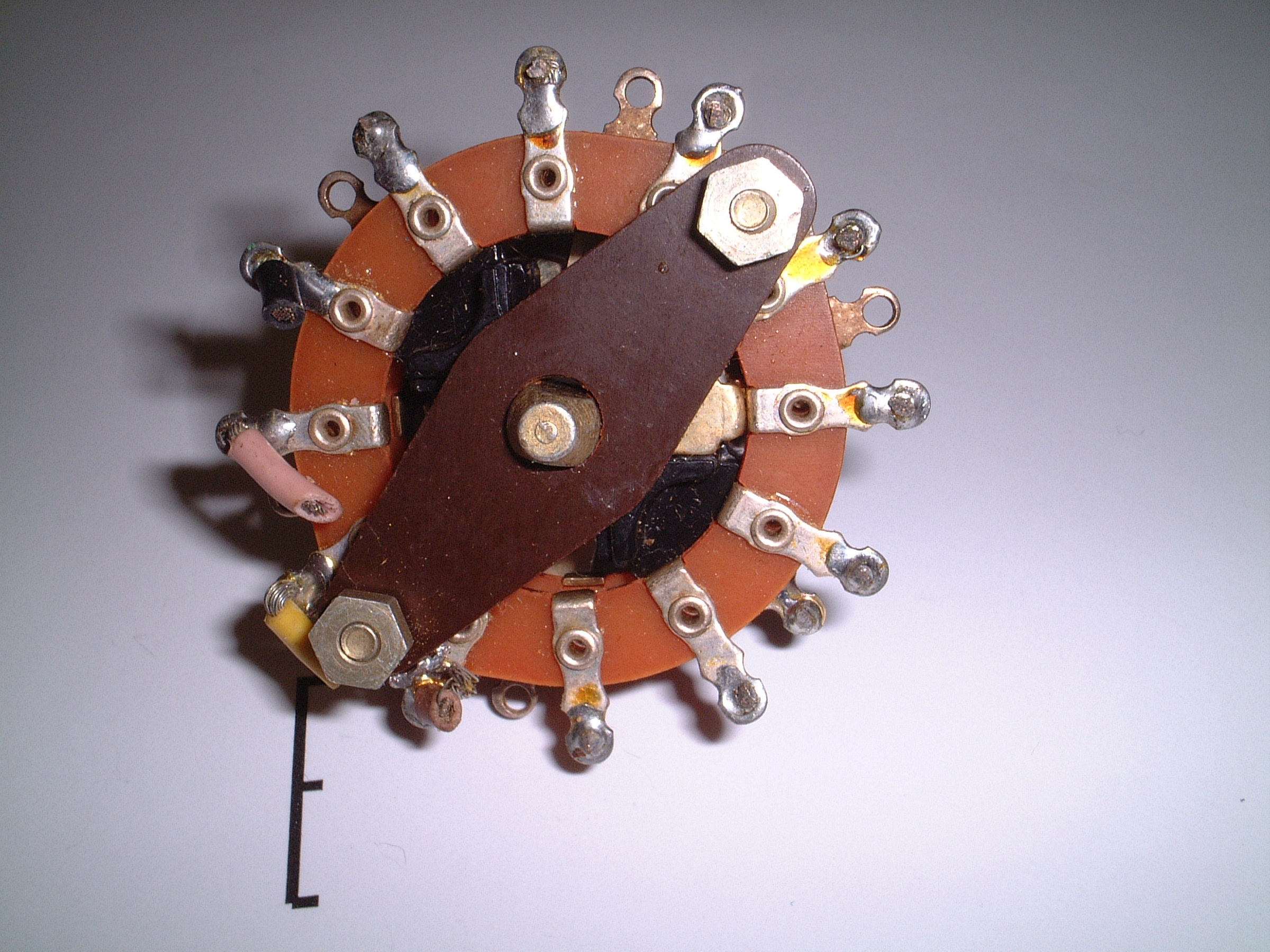

A one pole 11 way rotary switch.




  Enclosed 2 pole 6 way switch
  The connections to the two wipers can be seen in the middle.

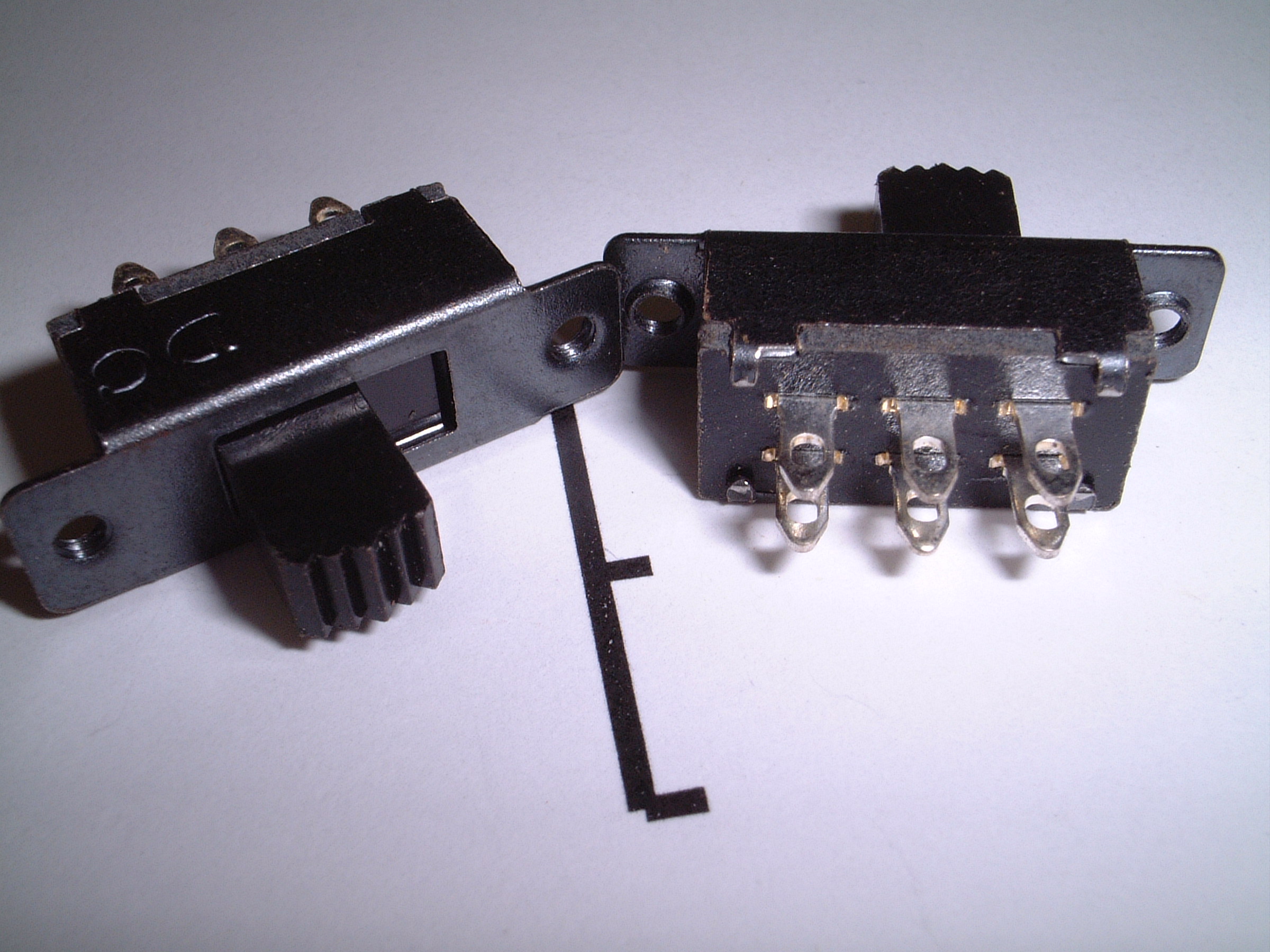

Small double pole, double throw switches.

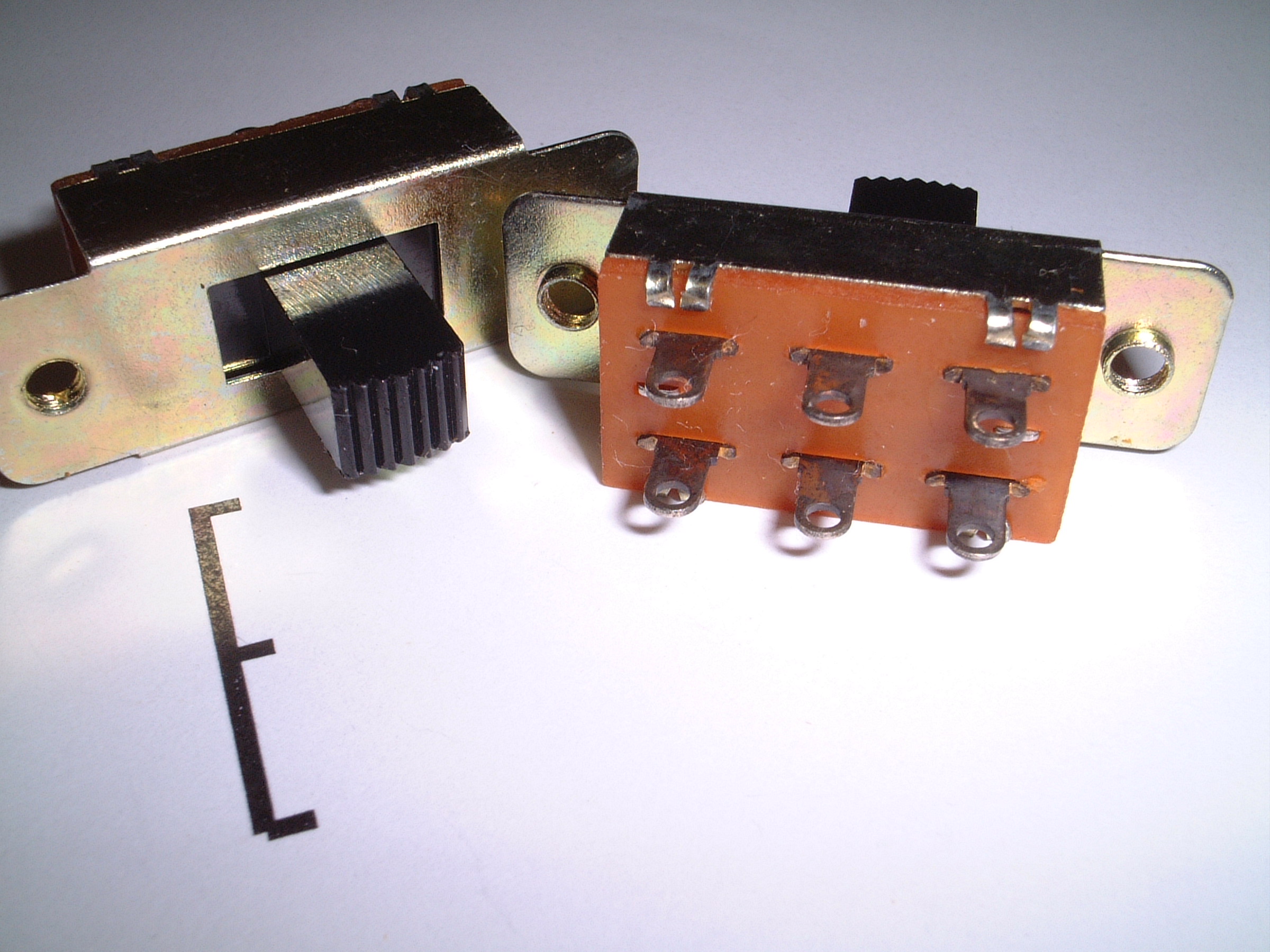

  Large double pole, double throw slide switches.

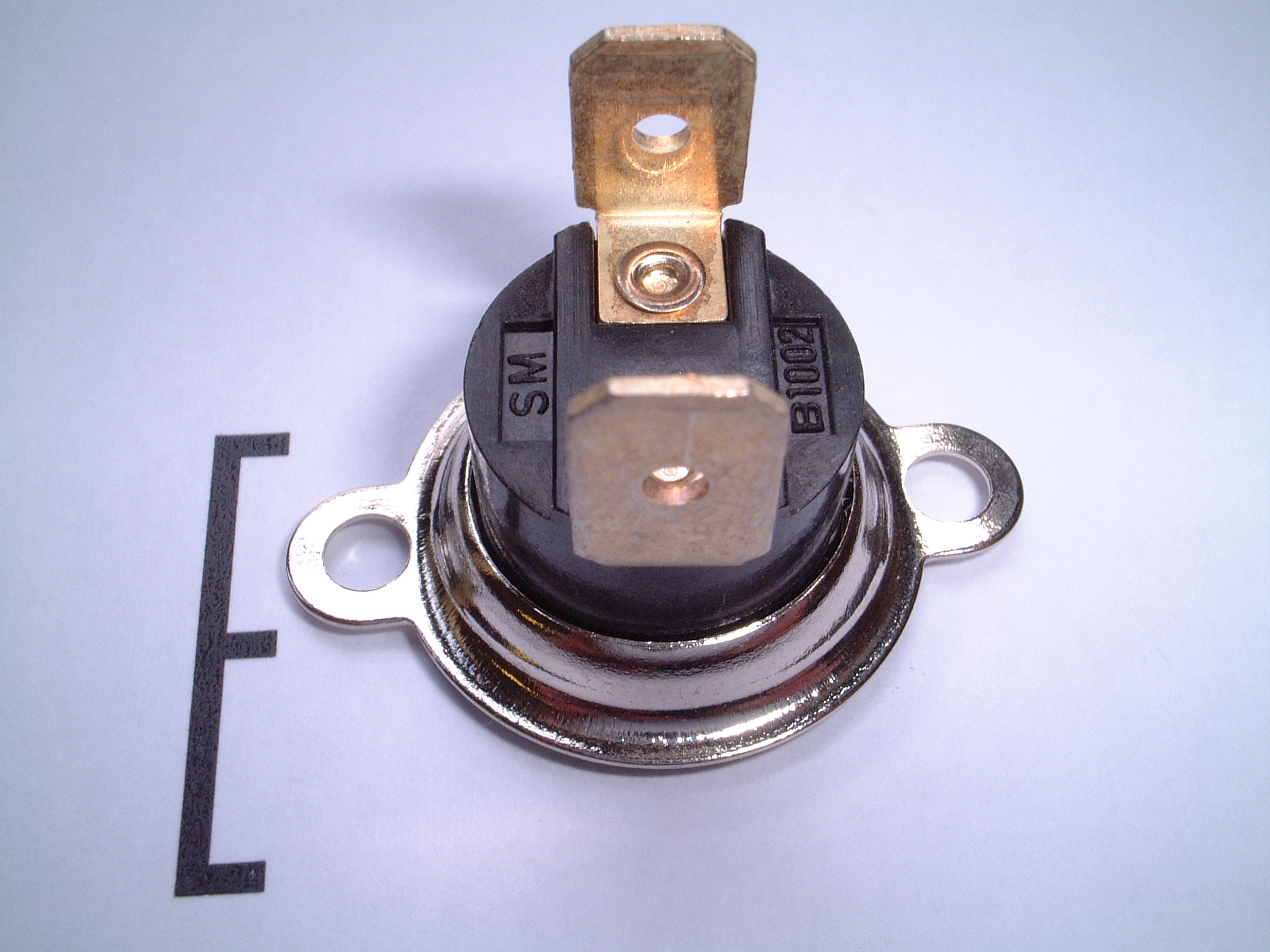

60°C thermal switch.

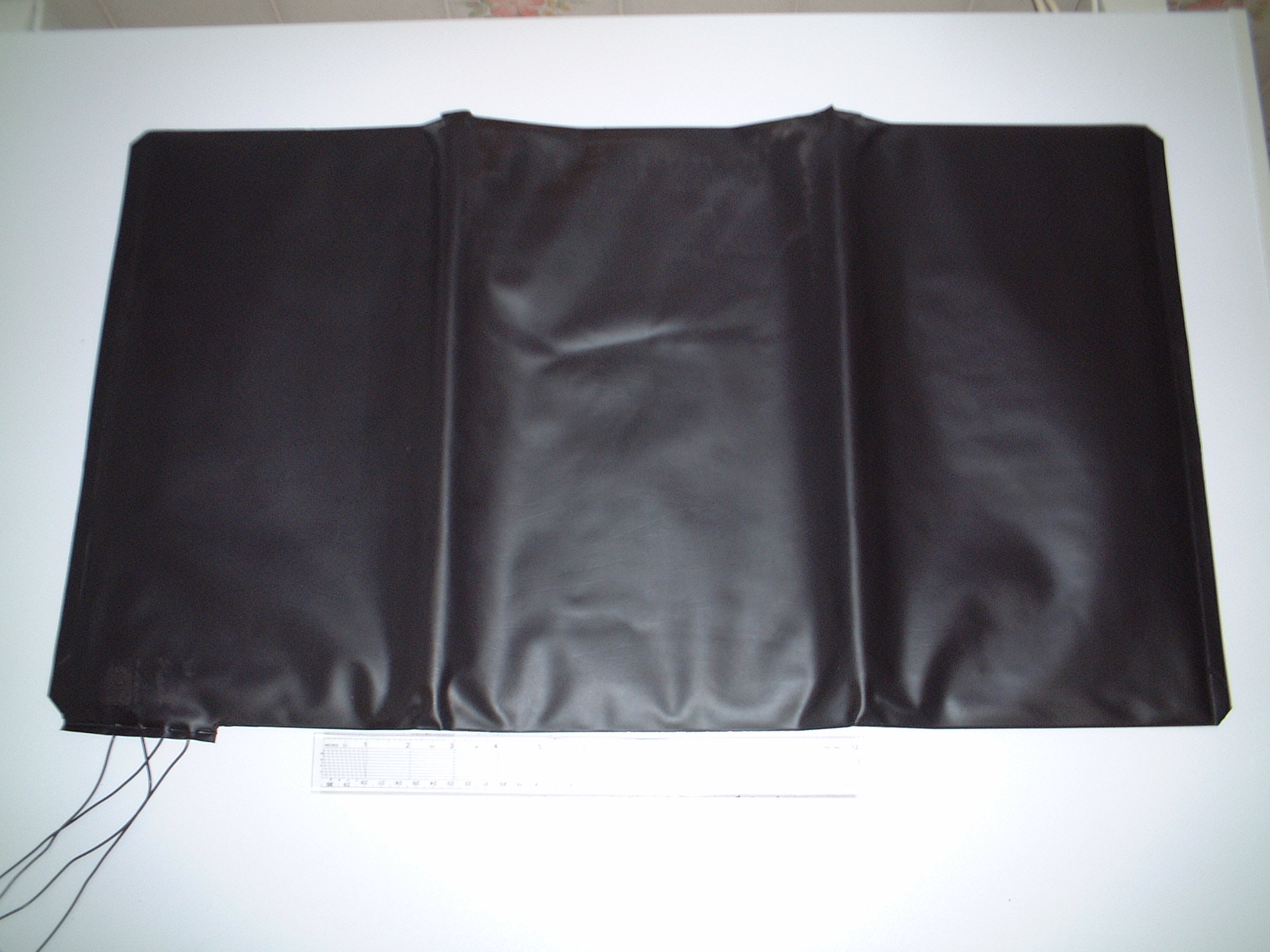

  Large pressure pad. Note the four wires.
  Two connect to the pressure pad contacts and
  the other two are for a loop circuit.

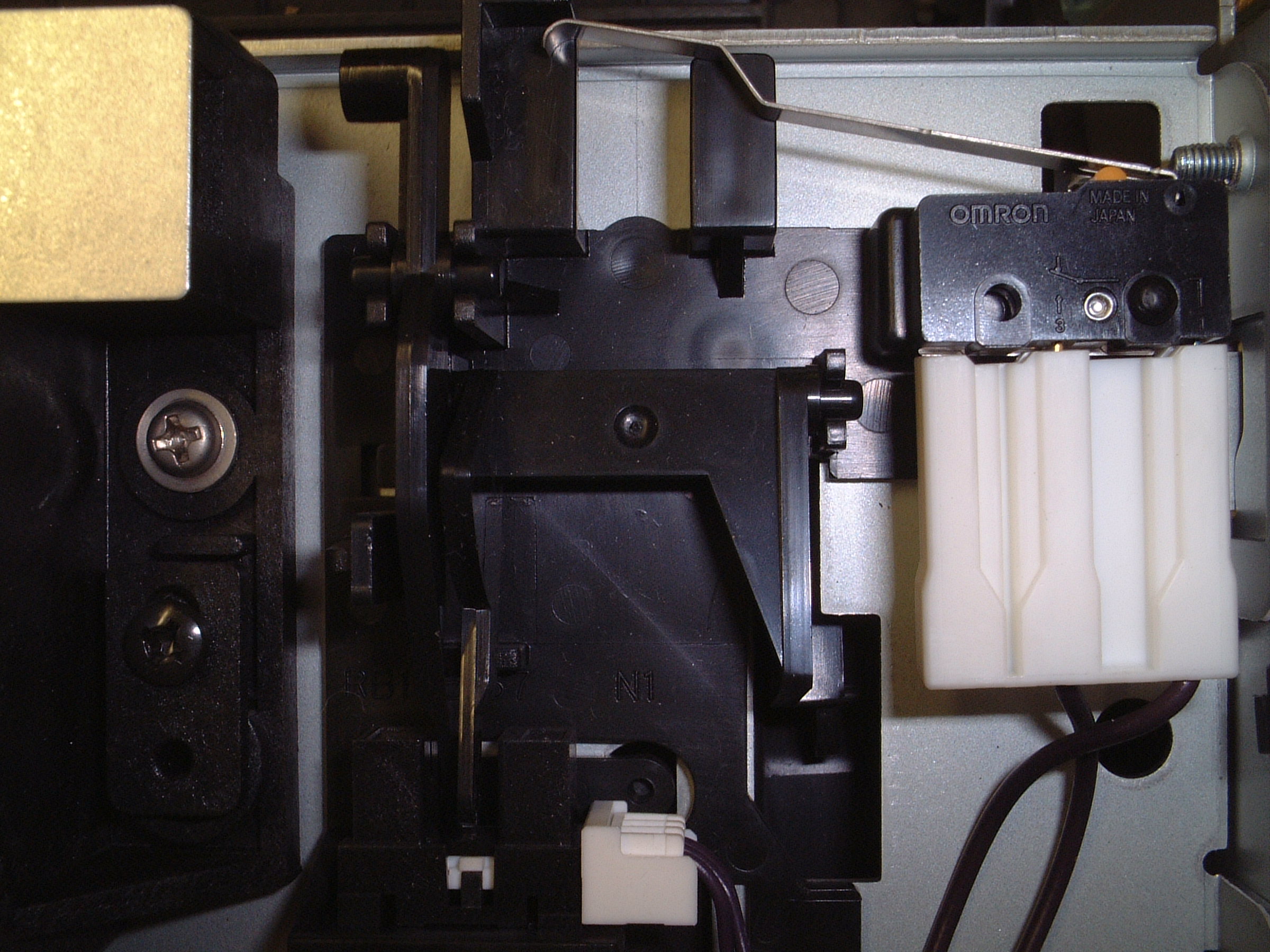

Microswitch used in a printer.

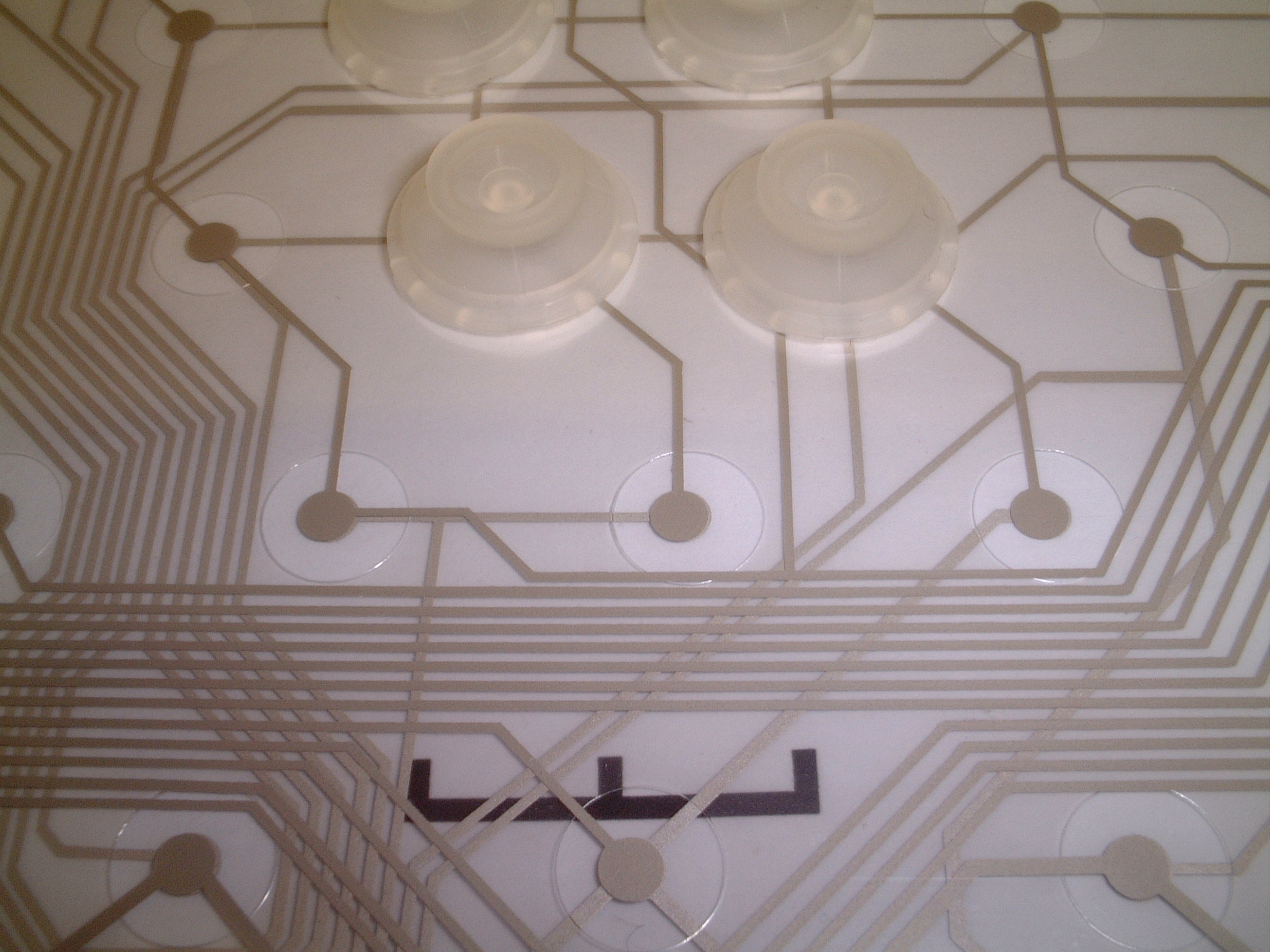

  The membrane switches from a keyboard. Note the rubber springs.
  Note that there is an upper and lower sheet making up the keyboard.




Keypad switch on a remote control.
Note the conductive rubber button.
