Heatsinks

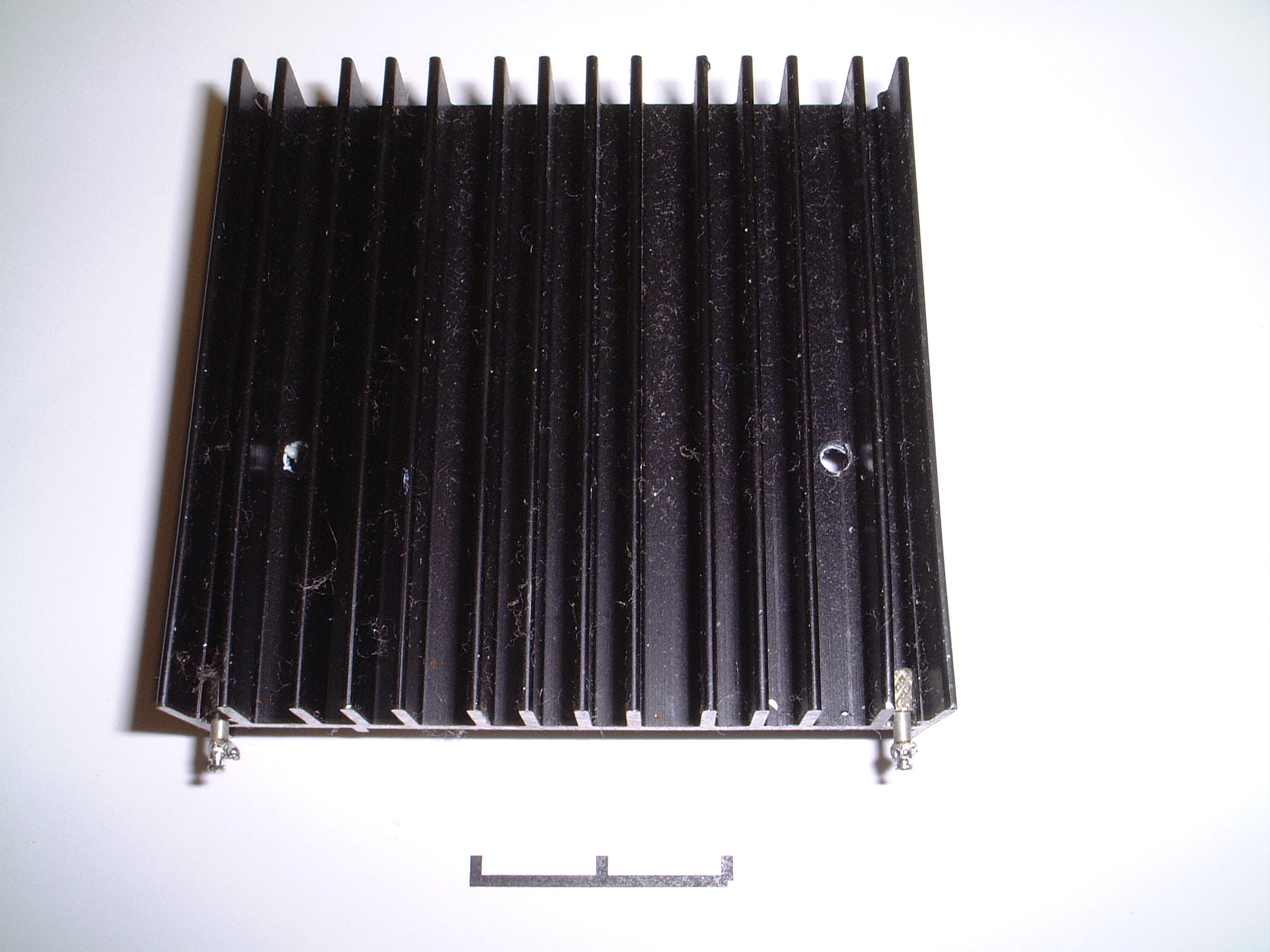

  A large heatsink with a thermal resistance of 2°C/W.

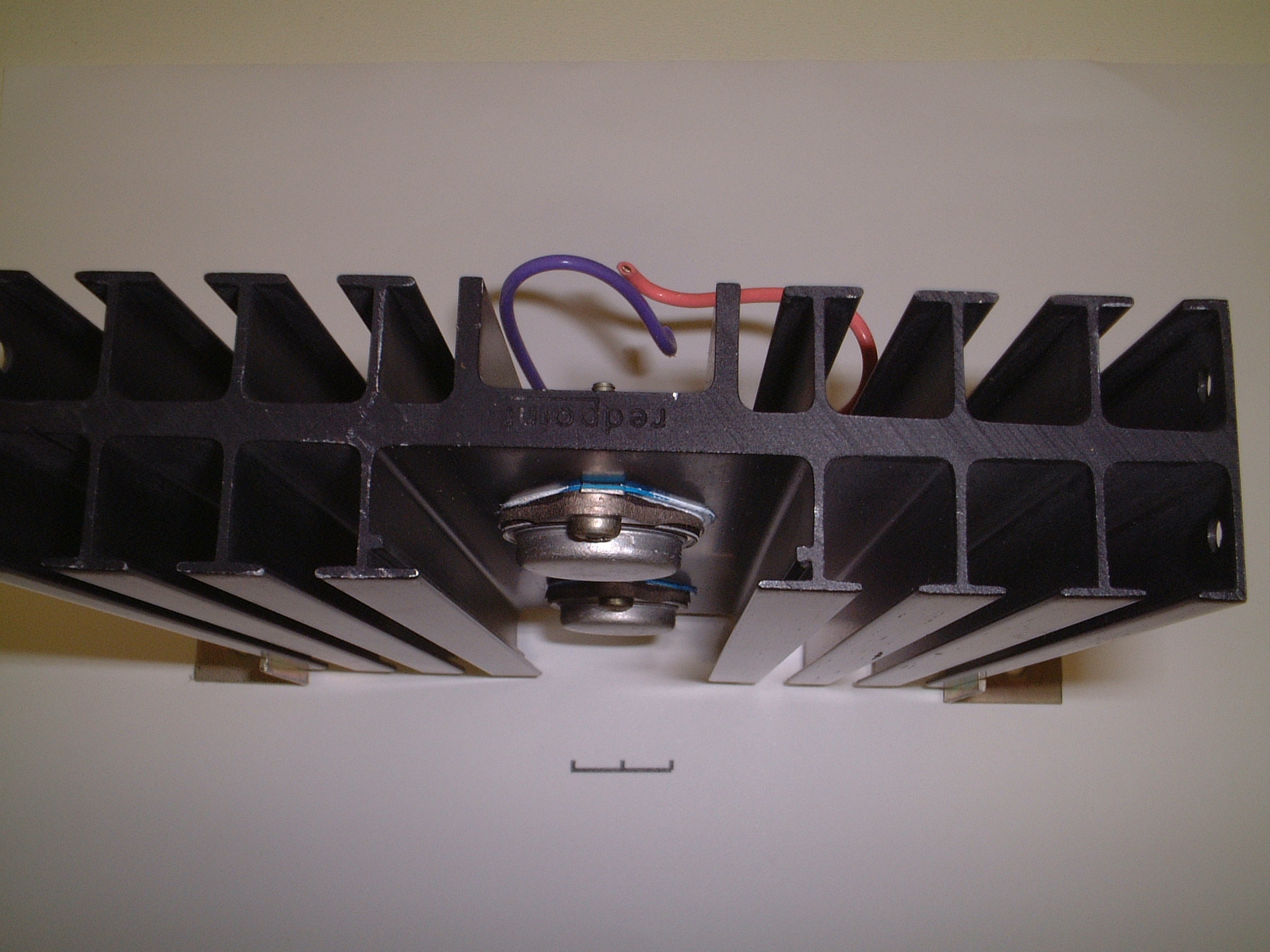

Top view of large heatsink.
Note the large fins.




  A smaller heatsink with a thermal resistance of 8°C/W.

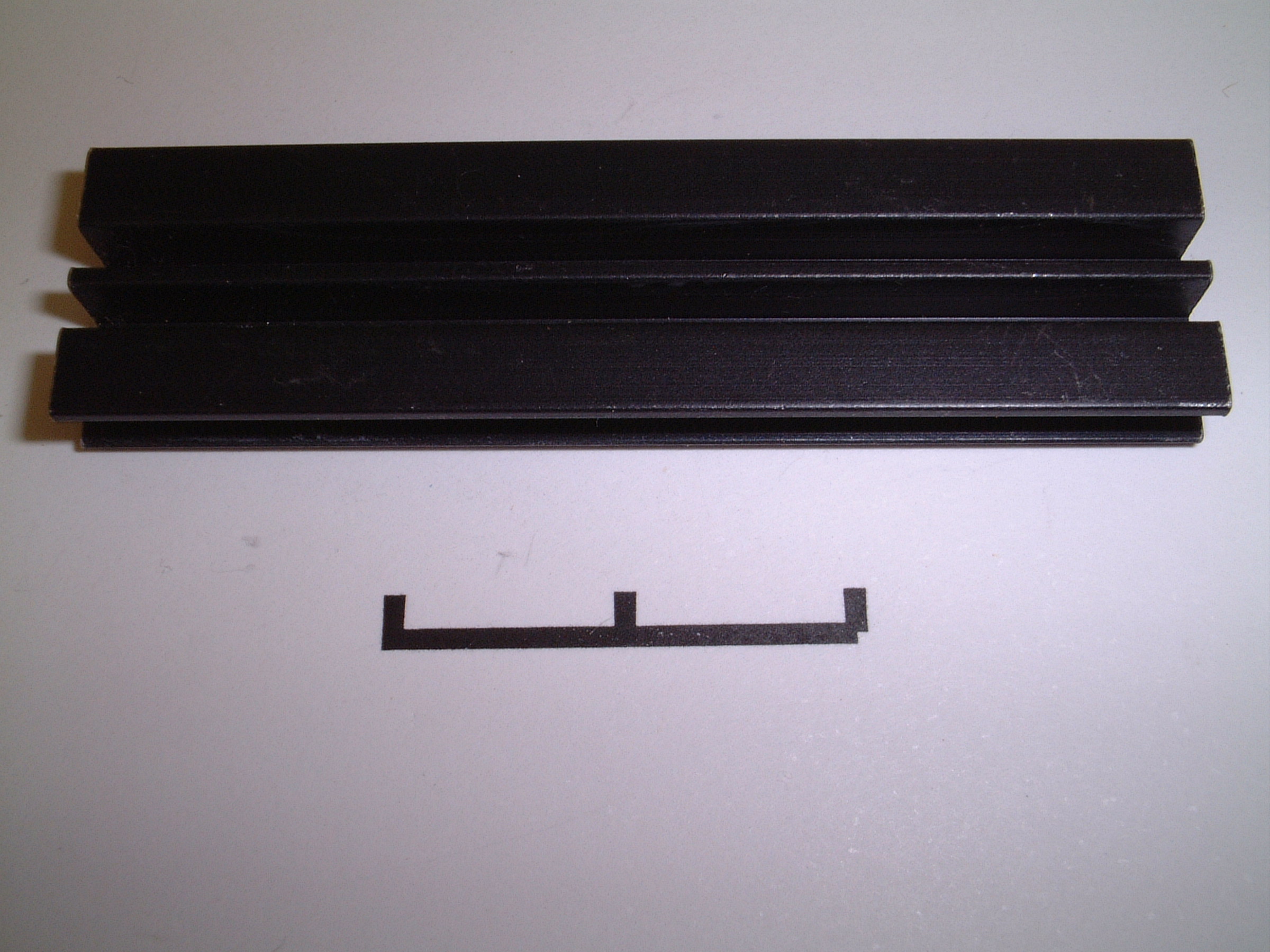

A heatsink suitable for glueing onto ICs.

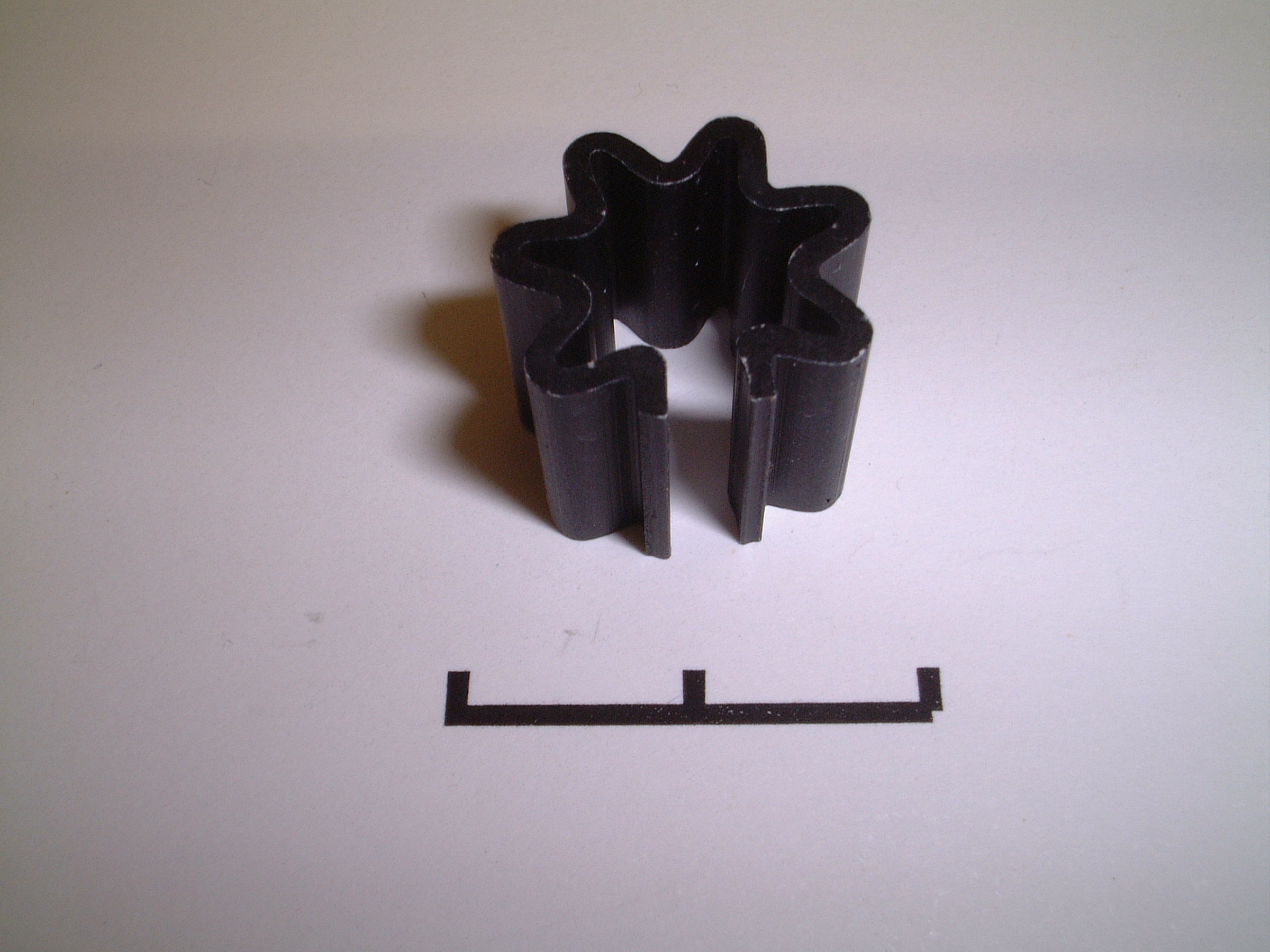

  A heatsink for clipping onto a T05 transistor case.
  Thermal resistance is 21°C/W

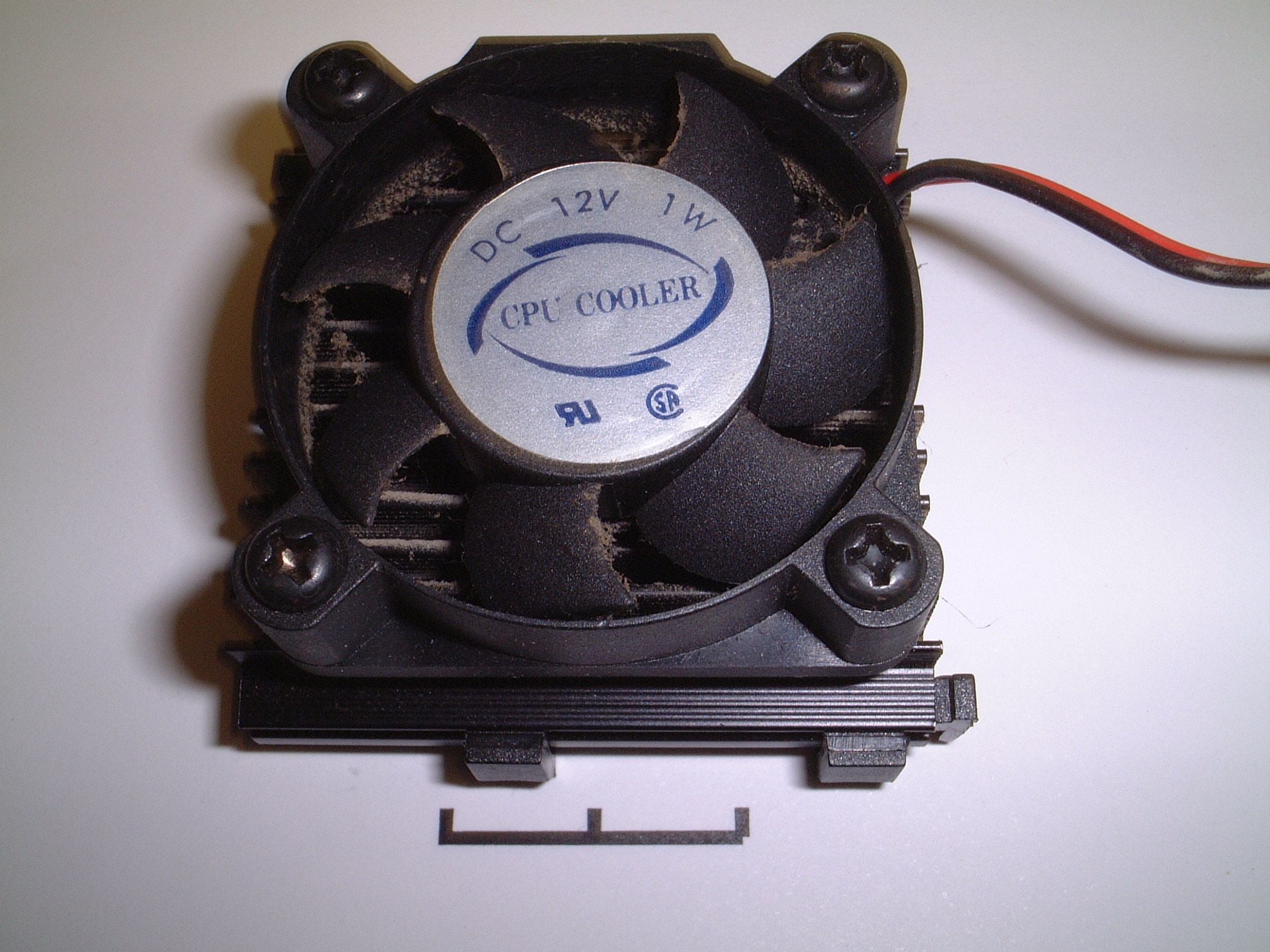

A fan assisted heatsink for use with a microprocessor.

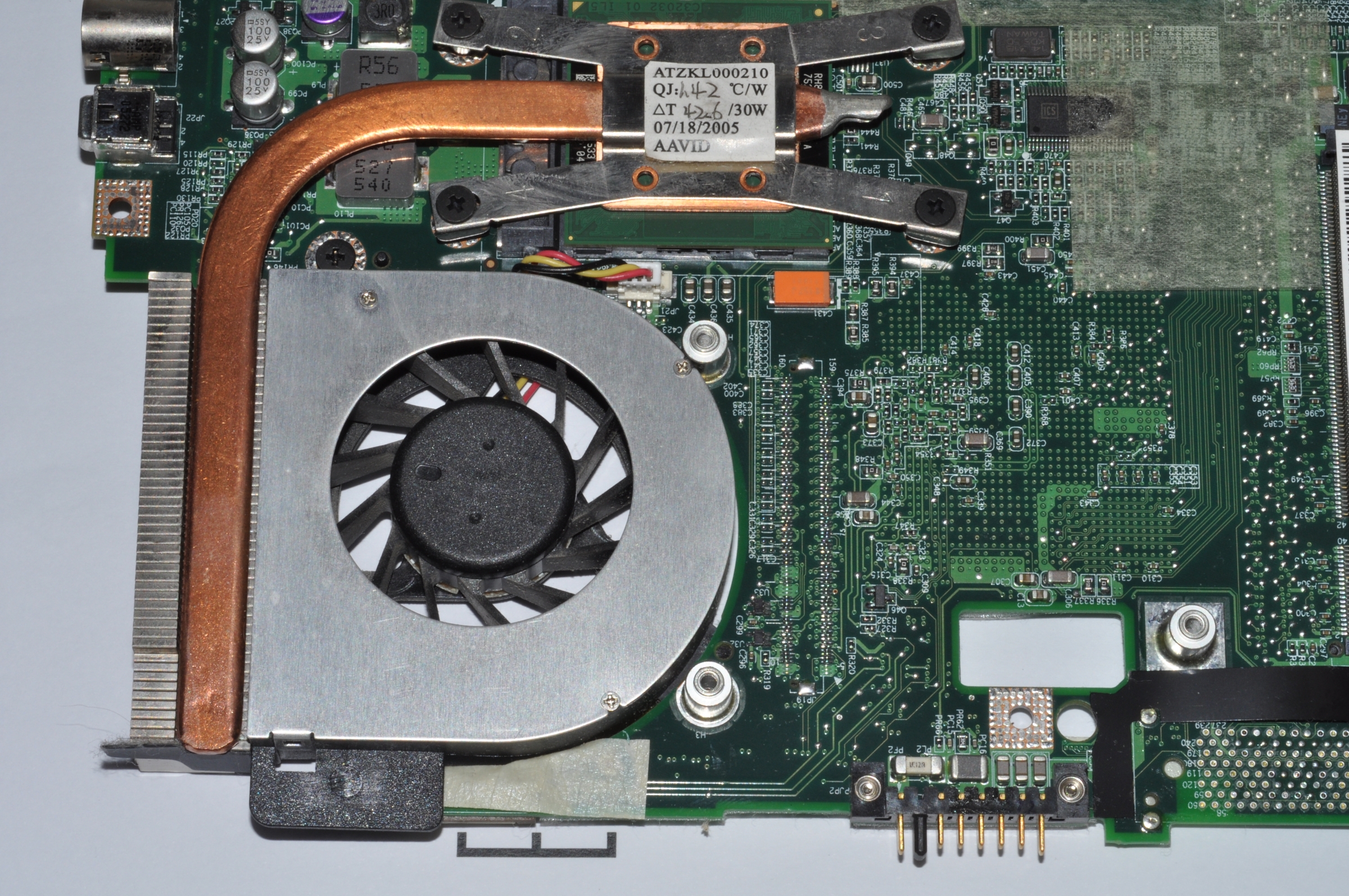

  Heatsink and fan in a laptop.
  Note the copper bar conducting the heat from the processor.
